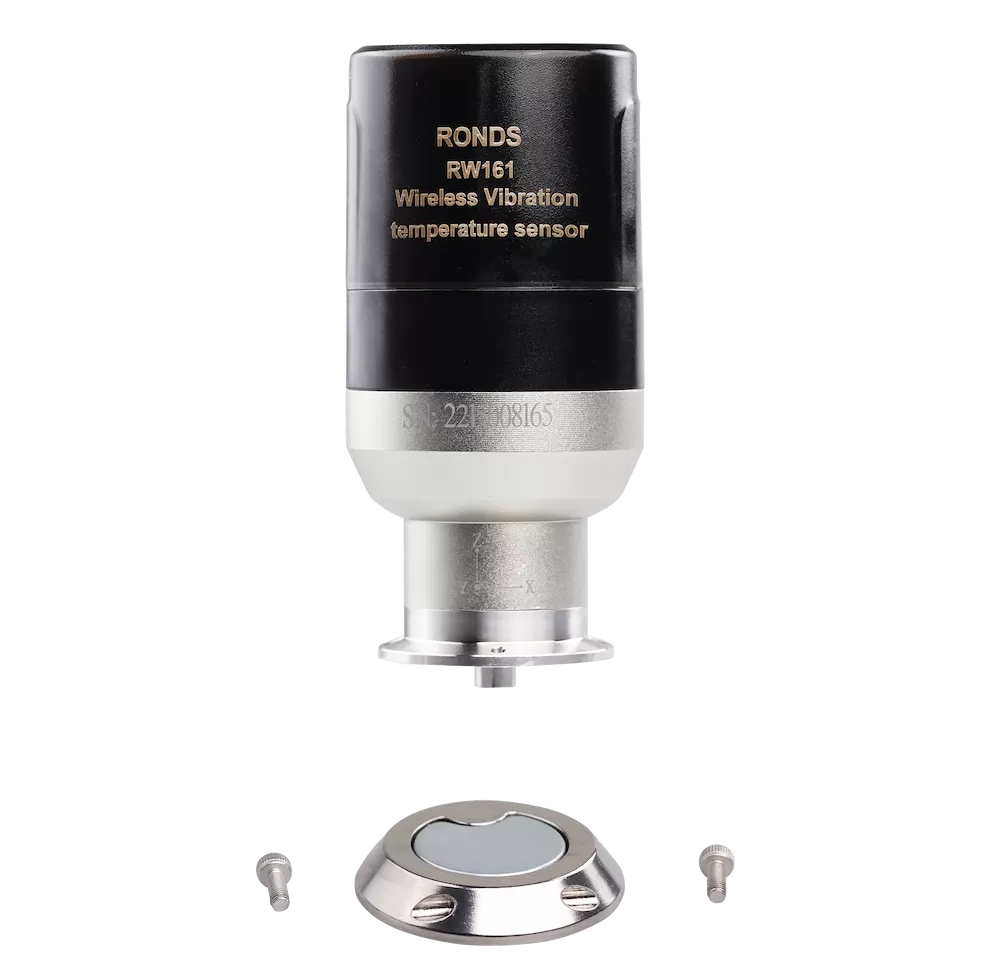

RW161 Wireless Tri-axial Vibration and Temperature Sensor
Features triaxial sensing (dual MEMS + single piezoelectric) for comprehensive equipment monitoring. With LoRa long-distance communication (up to 2000m), 3+ years of battery life, and IP68 protection, it excels in harsh industrial environments. Cost-effective wireless vibration sensor solution for your class-C equipement.
Wireless single-axis piezoelectric and dual-axis MEMS vibration and temperature integrated sensor.
Communication method: LoRa long-range communication, up to 2KM.
Long battery life: over 3 years.
6 low-frequency general indicators + alarm waveform.
Class C device replaces manual inspections, enabling large-scale deployment with exceptional cost-effectiveness.
Frequency range: Z Direction: 10Hz~10KHz; X, Y Direction: 10Hz~900Hz.
RW161 Wireless Tri-axial Vibration and Temperature Sensor Features
-
Triaxial Sensing & Comprehensive Monitoring
Dual MEMS (±16g) + single piezoelectric (±50g) captures vibration across 10Hz-10KHz, paired with ±2℃ accurate temperature tracking for all-round equipment insights.
-
Cost-Effective & Efficient
Replaces manual inspections, supports alarm-triggered waveform collection, and offers high cost-effectiveness to minimize downtime risks.
-
Long-Distance & Stable Communication
LoRa technology enables transmission distances up to 2000m (no obstacles), ensuring reliable data transfer even in large industrial sites.
