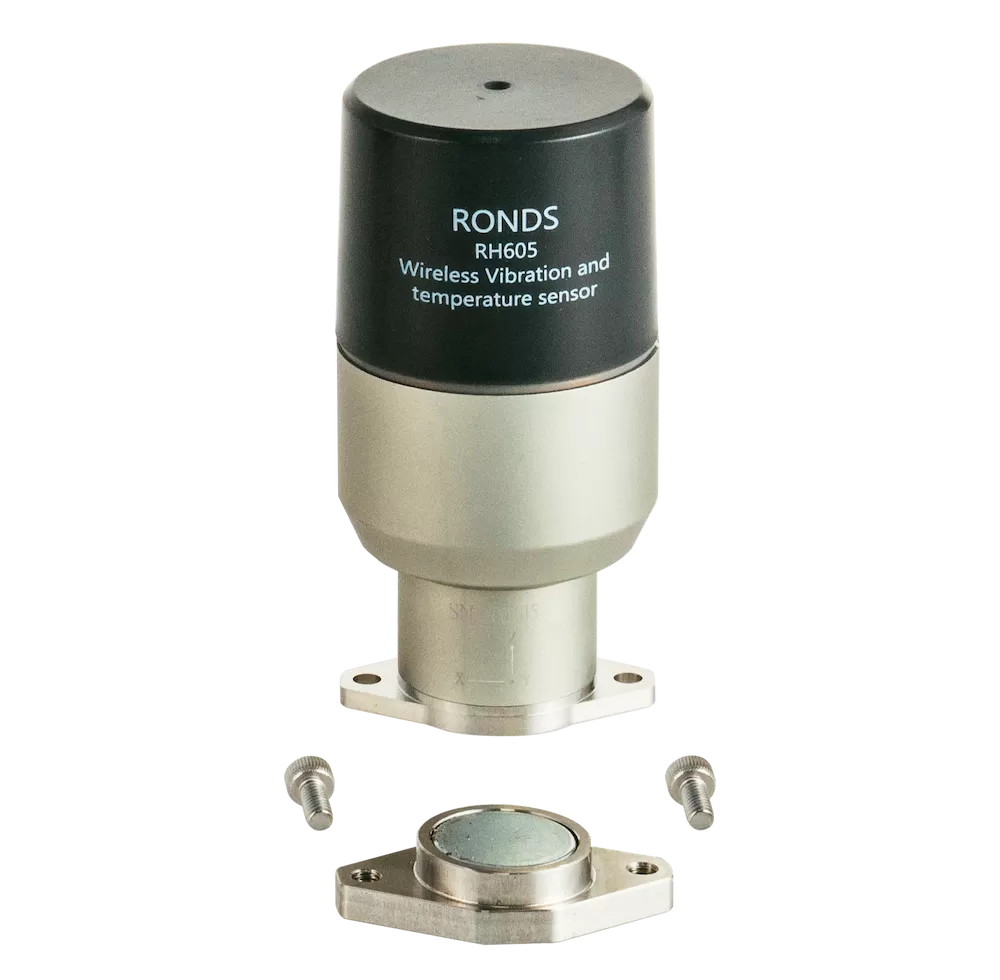

RH605 Wireless Tri-axial Vibration and Temperature Sensor

Ideal for critical industrial equipment monitoring, it combines dual-axis MEMS (0.1Hz-1kHz) and single-axis piezoelectric (2Hz-20kHz) tech for full-frequency vibration capture. With a 19Ah long-life battery, IP68 protection, and -40℃~+70℃ endurance, it suits harsh environments.

Frequency range: Piezo(Z) direction: 2Hz~20KHz, ±3dB; MEMS(X, Y) directions: 2Hz~1kHz, ±3dB
Waveform length: Piezo Z Maximal 128K; Mems X,Y Maximal 16K
Wireless single-axis piezoelectric and dual-axis MEMS vibration and temperature integrated sensor
Low-power design with an 8.5Ah battery
IP grade: IP68
ATEX Zone 0

RH605 Wireless Tri-axial Vibration and Temperature Sensor Features

Tri-Axis Sensing for Full-Dimensional Monitoring

Combines dual-axis MEMS (0.1Hz-1kHz) + single-axis piezoelectric (2Hz-20kHz) tech, capturing micro to high-frequency vibrations for comprehensive equipment status insights.
Accurate Temperature Monitoring

Covers -40℃~+125℃ temperature range with ±2℃ accuracy, synchronously capturing temperature and vibration data for holistic equipment health assessment.
Flexible Installation Modes

Magnet+glue or bolt mounting options, adapting to diverse surfaces for tool-free, hassle-free deployment.
