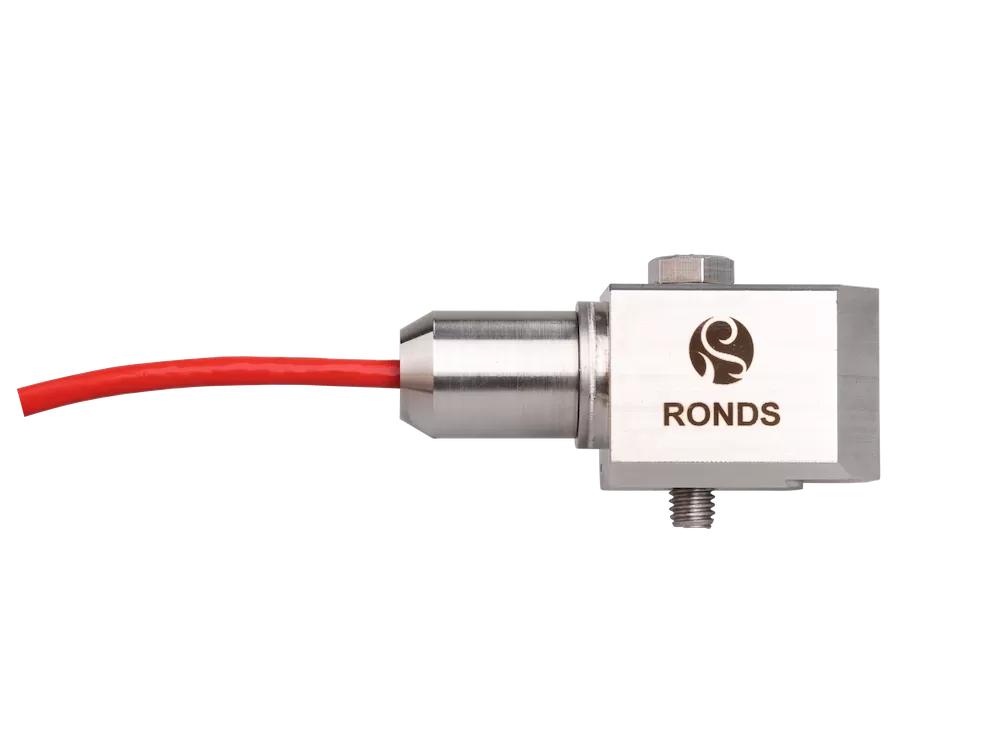

RH104TC Wired Vibration Temperature Sensor-Integrated Cable

RH104C(T) features 100 mV/g sensitivity technology, paired with an integrated cable and side-exit structure for specialized harsh environments. Cost-effective and durable, it excels in permanent on-line monitoring, especially high-humidity, underwater conditions. Equipped with ±80g dynamic range and 0.4Hz~10kHz wide frequency response, it identifies faults across speed ranges. IP68 protection, laser-welded 316L stainless steel, and -55℃~+125℃ adaptability guarantee stability, while the integrated wiring simplifies installation in space-constrained or moisture-prone sites.

• Frequency range: 0.4~10KHz(±3dB)

• Sensitivity: 100mv/g

• Measuring range: +80g

• Temperature measuring range: -40~120°C

• IP grade: IP68

• ATEX

• Side-mounted installation, adjustable direction.

• Built-in IEPE circuit, isolated output, constant current power supply.

• Laser-sealed welding, strong and reliable.

• Available for submersible equipment monitoring
