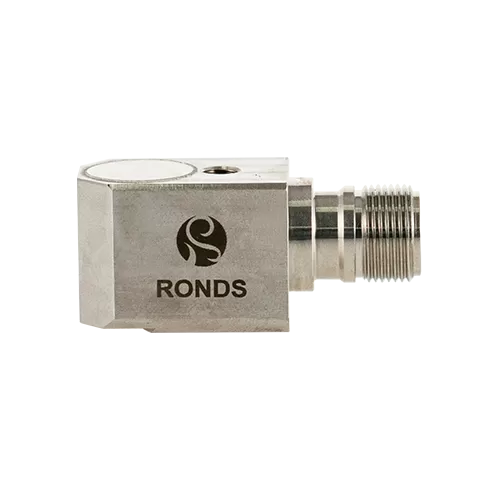

RH104(T) Wired Vibration Temperature Sensor

RH104(T) integrates 100 mV/g core technology with a unique side-exit, direction-adjustable design, retaining high performance in a practical form factor. Boasting ±80g dynamic range, 0.4Hz~10kHz frequency response, and IP68 protection, it detects faults in both slow and high-speed equipment. Military connectors, laser welding, and -55℃~+125℃ tolerance ensure reliability, with extra installation flexibility from its adjustable side output.

Frequency range: 0.4～10KHz(±3dB)
Sensitivity: 100mv/g
Measuring range: ±80g
Temperature measuring range: -40~120℃
IP grade: IP68
ATEX
Side-mounted installation, adjustable direction.
Built-in IEPE circuit, isolated output, constant current power supply.
Laser-sealed welding, strong and reliable.

RH104(T) Wired Vibration Temperature Sensor Features

Flexible Installation with Side Exit & Adjustable Direction

Unique side-exit interface with adjustable direction, fitting space-constrained scenarios and offering more layout options for equipment installation.
IP68 Protection

Boasts IP68 dustproof and waterproof rating, laser welding sealing, and 316L stainless steel material, ensuring stable signal transmission in harsh environments.

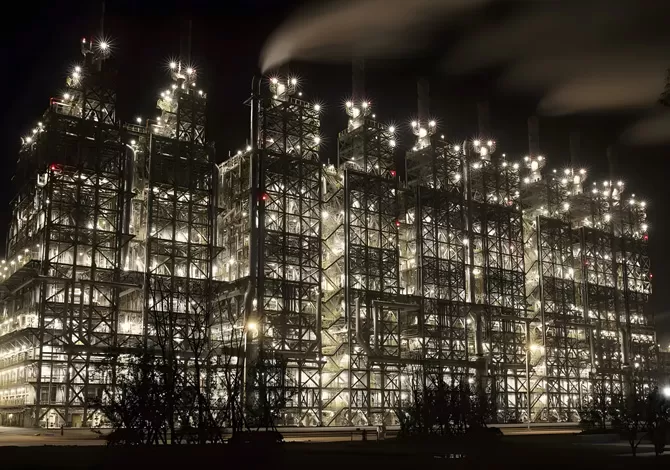

All-Round Monitoring

Equipped with 100mV/g sensitivity, ±80g range, and 0.4Hz~10kHz frequency response, meeting monitoring needs of both high and low-speed equipment.
