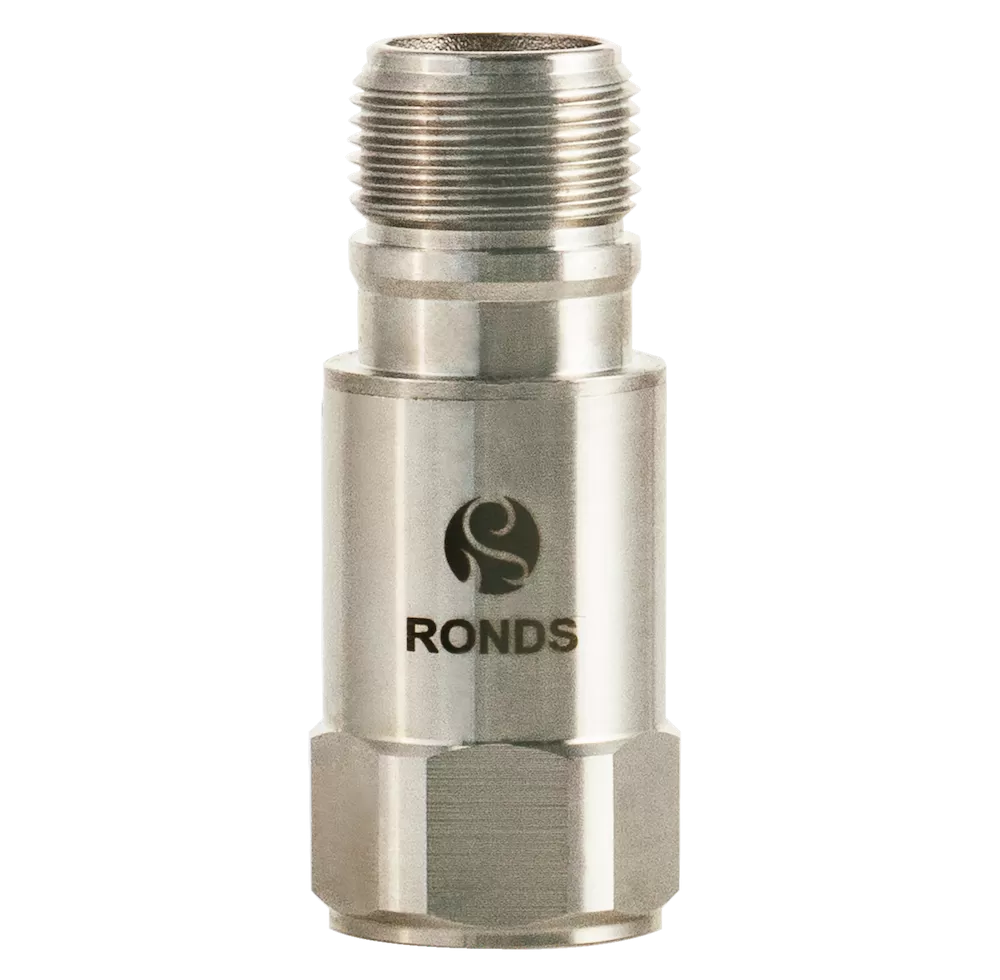

RH103(T) Wired Vibration Temperature Sensor

RH103(T) adopts 100 mV/g sensitivity technology, matching high-performance standards in a compact, lightweight design. Cost-effective and versatile, it suits permanent on-line monitoring and route-based measurements across harsh industrial sites. With ±80g dynamic range, 0.4Hz~15kHz wide frequency response, and laser-welded 316L stainless steel housing, it identifies bearing and equipment faults at various speeds, while military connectors ensure reliable performance in extreme conditions (-55℃~+125℃).

Frequency range: 0.4～15KHz(±3dB)
Sensitivity: 100mv/g
Measuring range: ±80g
Temperature measuring range: -40~120℃
IP grade: IP68
ATEX
Built-in IEPE circuit, isolated output, constant current power supply.
Laser-sealed welding, strong and reliable.

vibration sensors predictive maintenance

RH103(T) Wired Vibration Temperature Sensor Features

Wide Frequency Response

Covers 0.4Hz~15kHz frequency range with ≤1% amplitude linearity, accurately capturing fault signals from high and low-speed equipment to support anomaly diagnosis of key components like bearings.
Harsh Environment Resistance

Laser-welded 316L stainless steel housing paired with military-grade connectors, adapting to -55℃~+125℃ wide temperature range for reliable performance in harsh industrial sites. ATEX, IECEx optional choose.
Universal Adaptability

Features a compact, lightweight design with 100mV/g sensitivity and ±80g range, suitable for permanent monitoring and route-based measurements, ensuring multi-scenario versatility.
